How to Tape Cables Safely Across Floors

The problem

A cable across a walkway is the most common avoidable hazard on a live site.

Cables have to cross floors — from a desk to a stage, across a corridor, through a doorway. Taping them down badly creates two separate problems: people still trip on the ridge, and the tape has to be peeled off the cable jacket afterwards. Both are solved by the right product and a consistent method.

Use the right tape

Why cable path tape exists.

Cable path tape

Zone-coated gaffer tape: adhesive along both edges, with a smooth non-adhesive centre tunnel. The cable sits in the tunnel and is held by the two adhesive edges — so the tape grips the floor, never the cable. Removal leaves the cable clean and the floor clean.

Why not plain gaffer tape?

Taping directly over a cable sticks the adhesive to the jacket. On removal you either leave residue on the cable or peel it off in strips, and warm cables make it worse. It also creates a wider, more abrupt ridge, which is what people actually catch their feet on.

Method

How to run it.

Plan the route first. The shortest path is rarely the safest. Route along walls and under seating where possible, and cross walkways at ninety degrees so the crossing is as short as it can be.
Clean and dry the floor. Dust is the main reason tape lifts. A quick wipe of the run doubles how long it holds.
Lay the cable slack, then tape. A cable under tension will pull against the tape and lift the edges over the course of a show.
Press both adhesive edges down firmly along the full run, not just at intervals. Partial contact is what peels first.
Give doorways and corners extra attention. These take the most foot traffic and the most turning force. Add a cross piece at each end of the run.
Bundle multiple cables before taping rather than running several tunnels side by side, so you create one low, predictable ridge instead of several.
Walk the route before doors open and check every crossing by foot, not by eye.

Low light and egress

Where glow tape earns its place.

In a blackout, a taped cable run is invisible. Photoluminescent glow-in-the-dark tape absorbs energy from ambient light and glows in total darkness, rechargeable indefinitely and non-radioactive. Used to mark step edges, egress routes and the crossings themselves, it makes a route readable when the house lights are down. Charge it under normal lighting before the room goes dark.

The products for the job.

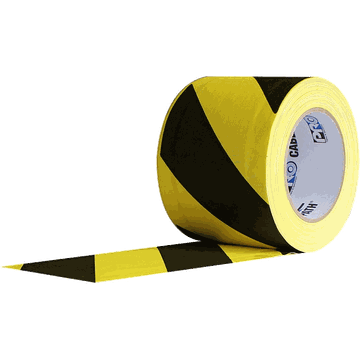

Cable Path — Zone Coated Gaffer Tape

Backing	Cotton cloth
Adhesive	Synthetic rubber, both edges
Tensile strength	45 lbs/in
Elongation	5%
Thickness	11 mils
Adhesion to steel	80 oz/in
Service temperature	10°C–93°C (50°F–200°F)

Non-adhesive tunnel width: 1.5 inch on the 3 inch roll, 2.5 inch on the 4 inch, 3.5 inch on the 6 inch. Match the tunnel to the cable bundle, not the other way round.

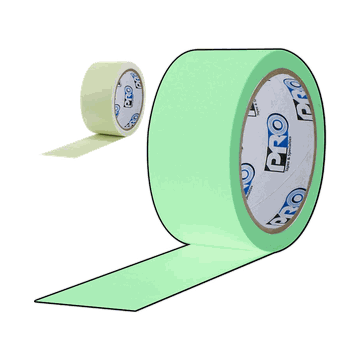

Pro Glow — Glow in the Dark Tape (Vinyl)

Backing	Vinyl film
Thickness	15 mils
Luminous compliance	PSPA Class B
Glow duration	Up to 10 hours per charge
Luminance	68.2 mcd/m² at 10 min; 8.76 at 60 min
Peel adhesion (steel)	96 oz/in at 15 min dwell
Light source	Non-radioactive

Up to ten hours of glow per charge, recharged by any ambient light. PSPA Class B.

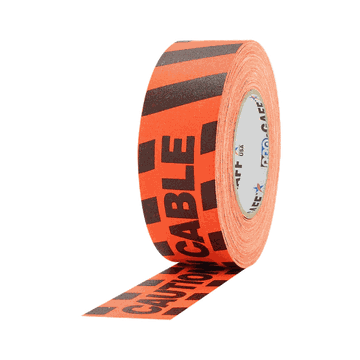

Pro Gaff Caution Cable — Printed Gaffer Tape

Backing	Matte cotton cloth
Adhesive	Synthetic rubber
Tensile strength	45 lbs/in
Elongation	5%
Thickness	11 mils
Adhesion to steel	80 oz/in
Removal	Clean removability from wires

Printed Pro Gaff — identical construction, high-visibility print.

Figures are Pro Tapes published technical data sheet values for products Artstag supplies. Typical values — not for use in writing specifications.

Common questions

Frequently asked.

What tape should I use to cover cables on the floor?

Cable path tape. It is zone-coated with adhesive on both edges and a non-adhesive centre tunnel, so it holds to the floor without sticking to the cable jacket. Ordinary gaffer tape applied over a cable will bond to the jacket and leave residue when removed.

Is taping cables enough for a public walkway?

For short crossings and controlled environments, properly applied cable path tape is the normal solution. For heavy public traffic, long runs, or wheelchair and trolley access, a physical cable ramp is more appropriate. Tape manages the trip edge; it does not carry rolling loads.

How do I stop the tape edges lifting during a show?

Clean the floor first, lay the cable with slack rather than under tension, press both edges down along the whole run, and reinforce doorways and corners with cross pieces. Most lifting traces back to dust or a cable pulling against the tape.

Does glow tape need a power source?

No. Photoluminescent tape absorbs energy from any ambient light and releases it in darkness. It recharges every time the lights are on, indefinitely, and contains no radioactive material.

Need the right tape for your job?

Artstag supplies Pro Tapes products direct across Singapore, Malaysia and Indonesia. Tell us the surface, the environment and how long it needs to hold, and we will point you to the right product.
